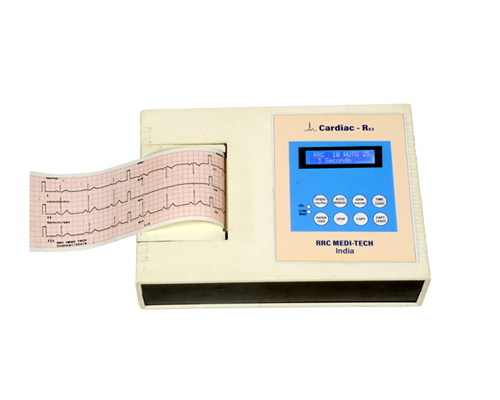

3- Channel Electrocardiogram (ECG)
- LCD Operation for CPU
- 12 Leads Acquisition
- Leads marking on paper along with speed and accuracy
- One key Operation
- Digital head array printer
- Automatic and Manual Modes
- Inbuilt Rechargeable Battery
Technical Specification
|
Dimension |
310 X 180 x 80 mm |
|
Weight |
4kg with battery (approximately) |
| A/D Resolution |
10Bit |
|
Lead selection |
Standard 12-leads |
|
Filters |
Low Pass Filter : 120Hz
High Pass Filter : 0.5Hz |
| Notch Filter |
Filter : 50/60Hz |
|
Acquisition |
Auto/Manual |
| Input Impedance |
> 50M ohms |
|
Frequency Response |
0.05Hz to 100Hz (-3db) |
| Time Constant |
3.2 seconds or longer |
|
Sensitivity |
5 mm/mV,10mm/mV & 20mm/ Mv |
| Display Format |
CPU Operation status Recording & Printing |
|
Paper |
Thermal Sensitive |
| Recording Speed |
25 and 50mm/sec |
|
Printing Labels |
Template, Leads ,Calibration ,Print speed, sensitivity |
|
Printout Format: |
a) Auto Mode 3×4 format three different time selector from keypad With Axis + Measurements & Interpretation b) Manual Mode: 3-Channel with maximum 10-sec data |
|
Power Supply |
220-240 Volts,50Hz +/_ 10% |
|
Power supply Operation AC/DC with ON/OFF Line |
|
Accessories
|
Patient cable |
1No |
| AC adaptor |
1No |
|
Earth Cable |
1No |
|
Clip on Electrodes |
4No |
|
Chest Electrode with Rubber Bulb |
6No |
|
ECG jelly Bottle |
1No |
|
Recording Paper |
1No |
| Operator’s Manual |
1No |
Battery Charging
|
Battery |
6.3V /1.3AH (Lead Acid) |
| Chargingb Time |
2-hours |
|
Dimension |
L255 X 160 x H70 mm |
|
Weight |
1.5Kgs |
